Blink an LED with NodeMCU

In this example we simple flash an LED connected to a nodemcu (esp8266) board. We will use lua for this example.

You will need a NodeMCU board, an led and a resistor, some connecting wire and if you are using components a breadboard makes life easier, I use combined LEDs and resistors on small modules which greatly simplify things removing the need of the breadboard



Layout

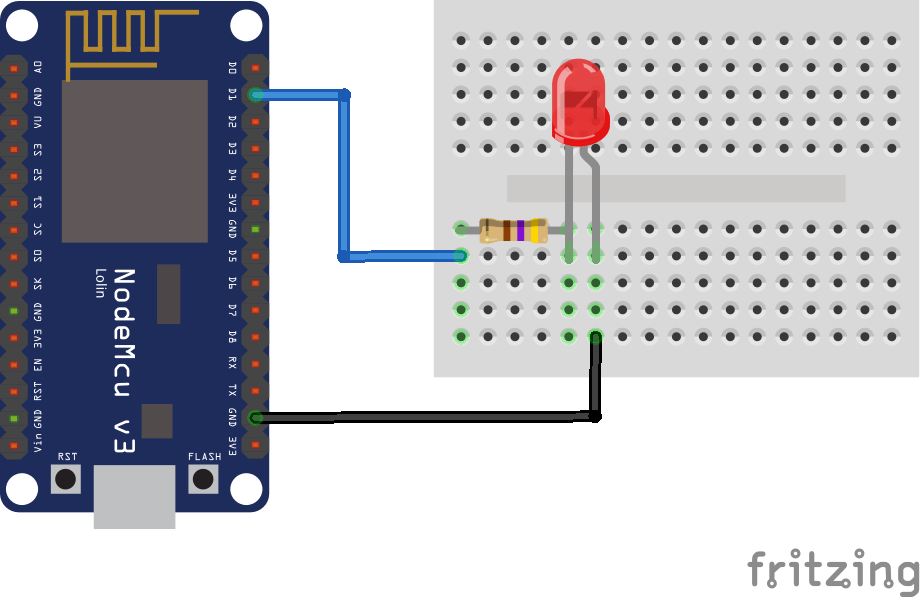

The layout assumes the use of a breadboard, I have chosen a 470 ohms resistor

nodemcu and led

nodemcu and led



Code

Save this as ledflash.lua and load it via the ESPlorer, video underneath shows this

LED_PIN = 1

gpio.mode(LED_PIN, gpio.OUTPUT)
value = true

tmr.alarm(0, 500, 1, function ()
    gpio.write(LED_PIN, value and gpio.HIGH or gpio.LOW)
    value = not value
end)



Video

The video shows me using the ESPlorer tool to connect to the NodeMCU board, open my lua file and then upload to my NodeMCU board
